Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity

Brand Name : DORCO

Model Number : D51K

Place Of Origin : China

MOQ : 1 Set

Price : 25000 - 147000 USD Per Set

Packaging Details : After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.

Delivery Time : 45-75 Working Days

Payment Terms : L/C,T/T

Cooling system : water

Nominal outer diameter of grinding ring : 160 -1300 Mm

Main transmission mode : Hydraulic / Pneumatic Device

Safety features : Emergency Stop Button, Safety Protection Device, Overload Protection

Ring rolling height : 40 -300 Mm

Radial rolling force(KN) : 50 - 800 KN

Contact Now

Product Description:

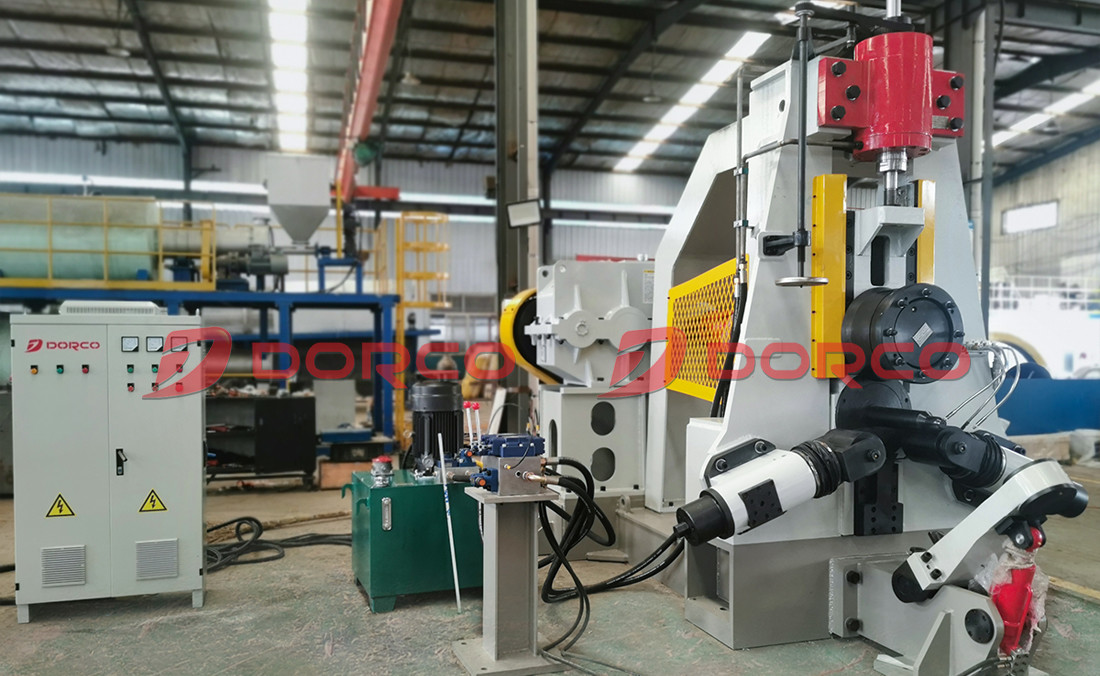

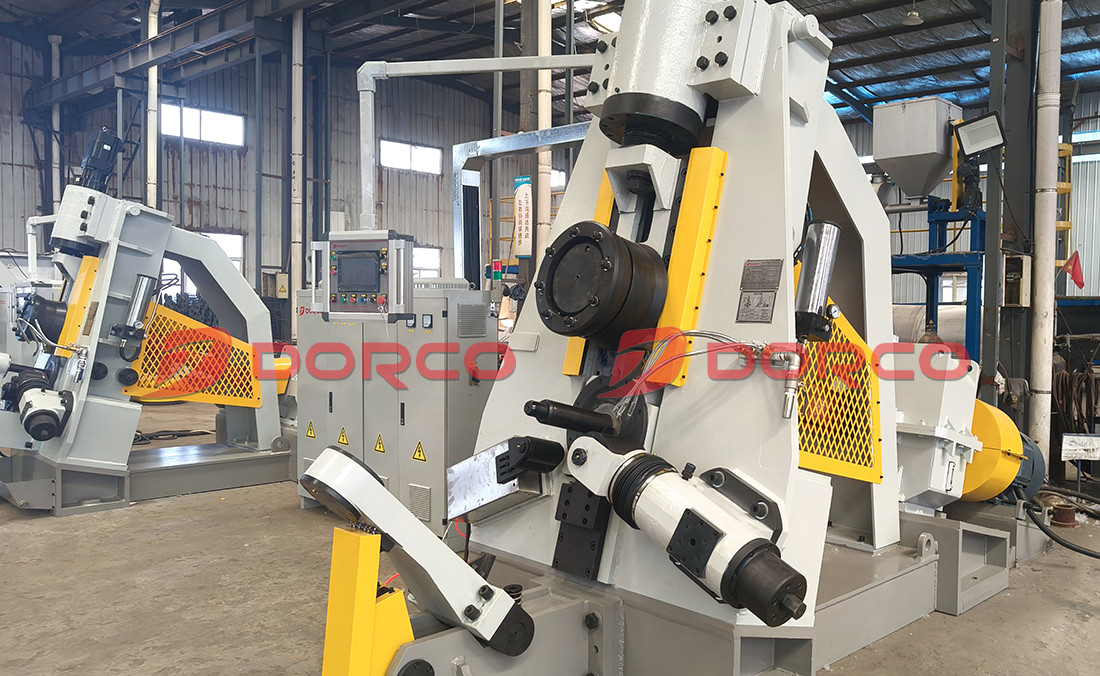

The D51K CNC vertical ring rolling mill is an advanced equipment for efficient and precise ring rolling. Its main transmission adopts hydraulic or pneumatic mode, which flexibly adapts to diverse production needs.

One of the core advantages of this device is its powerful radial rolling capacity (50-800 KN), which enables it to easily handle ring rolling tasks of different materials and sizes. Whether it's small workpieces or large-scale industrial production, they can handle it with ease.

In terms of processing range, the equipment provides a ring height adaptability of 40 to 300 millimeters, providing sufficient flexibility to meet various design specifications and requirements. This wide range of processing heights makes it an ideal choice for manufacturers to meet diverse product demands.

Safety is always the top priority in design. D51K is equipped with an emergency stop button, which can immediately shut down in case of sudden situations; Comprehensive safety protection devices effectively prevent accidental injuries during operation; The overload protection function ensures the stability and service life of the equipment during long-term operation.
High quality product performance: Through special rolling process optimization, the internal structure of the ring is made uniform, significantly improving the strength, hardness, and fatigue resistance of the ring. It can be applied to work scenarios with extremely high requirements for ring performance.

The ring rolling machine mainly consists of the following parts:
The main transmission box, body, main roller slider, centering mechanism, measuring device, hydraulic system, hydraulic pipeline, control system, lubrication system, cooling system, foundation, etc.


Technical Parameters:

DRC-D51K(H)

160

250

350

450

550

800

1000

1200

1300

DRC-D51K(P)

160

250

350

/

/

/

/

/

/

Nominal outer diameter of grinding ring(mm)

160

250

350

450

550

800

1000

1200

1300

Range of outer diameter of rolling ring(mm)

55-160

80-250

180-350

250-500

350-600

400-800

500-1000

600-1200

600-1300

Ring rolling height(mm)

40

130

160

230

300

200

200

200

300

Radial rolling force(KN)

50

150

300

500

550

550

800

800

800

Linear rolling speed(m/s)

2.5

1.8

1.5

1.5

1.3

1.37

1.3

1.3

1.3

Cylinder stroke(mm)

50

100

110

130

150

200

250

250

350



Applications:


The CNC vertical ring rolling machine is an advanced equipment for efficient and precise manufacturing of high-performance annular forgings. It is widely used in the production of bearings, gears, flanges (especially flat welding and large diameter flanges), thin-walled cylindrical parts, as well as various connecting and transmission components. Its strong material adaptability (covering high-temperature alloy steel, bearing steel, carbon steel, copper, aluminum, etc.) and excellent process advantages (near net forming, excellent performance, high precision, high efficiency) make it an indispensable key equipment in many industries such as modern machinery manufacturing, automotive, wind power, aerospace, shipbuilding, petrochemicals, engineering machinery, etc., perfectly serving the application needs you described.


Customization:

We provide comprehensive service support from pre project consultation to equipment installation, debugging, and maintenance in the later stages. In the implementation process of customized solutions, we maintain close communication with clients, promptly solve problems encountered, and ensure the smooth progress of the project.


Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity


Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity


Precision CNC Vertical Ring Rolling Machine Multi-specification Large Production Capacity
